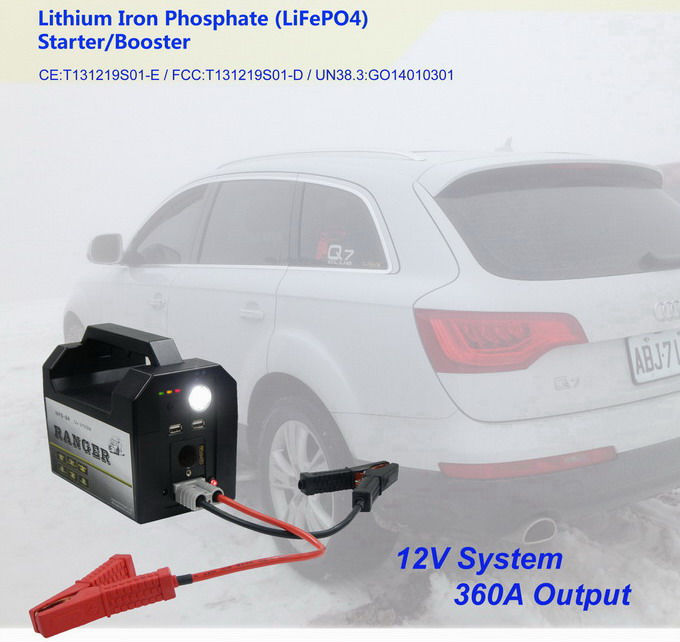

MPB-04 Introduction
MPB-04 is the powerful product of MPB series. With 6.9AH capacity, it can provide 12V - 360A (more than 4,500W 10 seconds) maximum output. Most of 12V system engine vehicles can be enhanced started. Its dimension is 200 × 120 × 155mm and only 1.6kg in weight. It can provide 12V-360A maximum output in 10 seconds (equaled to 4,500W based on 13.2V) as the traditional 35~45AH lead-acid battery. The continuous current output is 210A(2,700W). MPB-04 is designed for 12V system vehicles, like AUDI A8 3.0/4.2 gasoline engine, M-Benz GLK 300(3.5L) and Toyota Land Cruiser 4.0L,...etc. Also, it can provide the diesel engine power energy to start, like AUDI Q7 3.0 TDI Quattro. If the original battery keeps 10% capacity but can not start the engine. It can be used to enhanced start your vehicle, no matter what's the type. MPB-04 has 6 modes (2.5W/ 1.25W/ 0.5W continuous / fast/ slow/ SOS flashing) lighting output. It can be used lasted more than 24 hours at the maximum lighting output. 12V cigar socket output is protected by MCU inside and limited by 20A fuse. The most powerful output is the 12V large current output system. For large current system, totally protective designation is one of the main features of MPB series products. Short circuit, wrong connection, high temperature, high voltage, and low voltage protection, all of the protective functions make this product more safe and reliable. Another main feature of MPB series product is the charging ways. You can use the traditional adaptor to charge it in 120~150 minutes; use the twin-cigar-plugs cable by the car's cigar socket, or quickly recharge it by the large current socket in 7~10 minutes (recharge to 85% capacity). All MPB Series products made by LiFePO4 battery cells. Because of the characteristics of the battery cells, even the 12V system is discharged to under 3Volt, still you can recharge it again and it almost didn't hurt (maintenance free). And another feature is the super low self-discharge loss, you can put it there and do nothing more than 6 months, the voltage of this product could still keep at more than 13.3 volt (>60% capacity. super low self-discharge). Remember, each time you use it to jump start your engine, after the engine starts, keep it connect to the poles more 60~120 seconds. The generator of your vehicle will recharge it back. So, you do not have to take it home and charge it. List below shows which gasoline-engine vehicle you can start directly (We had tested so far). Sometimes, the positions of rest pistons will effect the cranking current. Generally speaking, the maximum output current of MPB-04 is equaled to (or larger than) a traditional 40AH lead-acid battery. So, for 8.0L gasoline engine, or 3.0L 12V diesel engine system, use MPB-04 to enhanced start the engine is enough, except for the cold weather. For your reference.
-12℃ Mitsubishi Pajero 3.0L Starting Test (gasoline engine) Recorded in Russia
