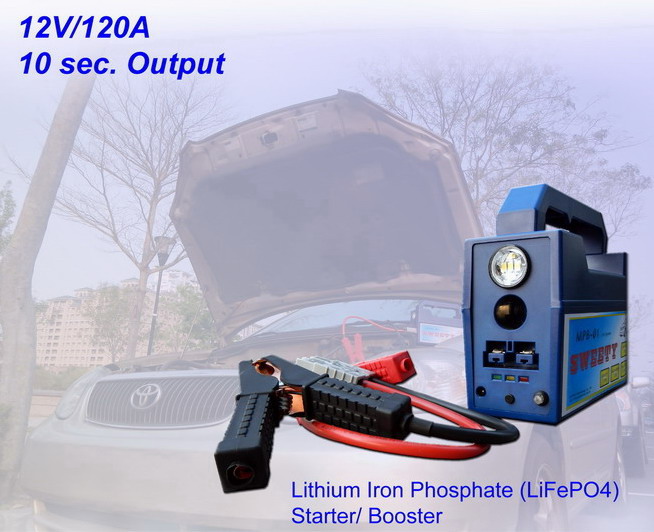

MPB-01 Introduction
MPB-01 is the smallest one of the MPB series product. The dimension is 185 × 65 × 150mm and only 800g in weight. It can provide 12V 120A maximum output in 10 seconds (equaled to 1,500W based on 13.2V) as the traditional 10~12AH lead-acid battery. The continuous current output is 70A. MPB-01 is designed for a small, naturally aspirated engine car (NA, less than 2.0L displacement, gasoline engine). For example, Toyota Altis 1.8L and Suzuki Solio. (But Luxgen is not suitable because of the different engine/start motor design. The cracking current of Luxgen is almost 350~400A. MPB-04 is suitable for it.). MPB-01 has 6 modes (2.5W/ 1.25W/ 0.5W continuous / fast/ slow/ SOS flashing) lighting output, 12V cigar socket output (<240W), and 12V large current output. For large current system, totally protective designation is one of the main features of MPB series products. Short circuit, wrong connection, high temperature, high voltage, and low voltage protection, all of the protective functions make this product more safety and reliable. Another main feature of MPB series product is the charging type. You can use the traditional adaptor to charge it in 60~90 minutes, or use the twin-plugs cable by the cigar sockets of the car, or quickly recharge it by the large current socket in 3 minutes (recharge to 90% capacity). All MPB Series products made by LiFePO4 battery cells. Because of the characteristics of the battery cells, even the 12V system is discharged to under 3Volt, still you can recharge it again and it almost didn't hurt (free Maintenance). And another feature is the super low self-discharge loss, you can lay it up more than 6 months, the voltage of this product could still keep at more than 13.3 volt (>60% capacity. super low self-discharge).
